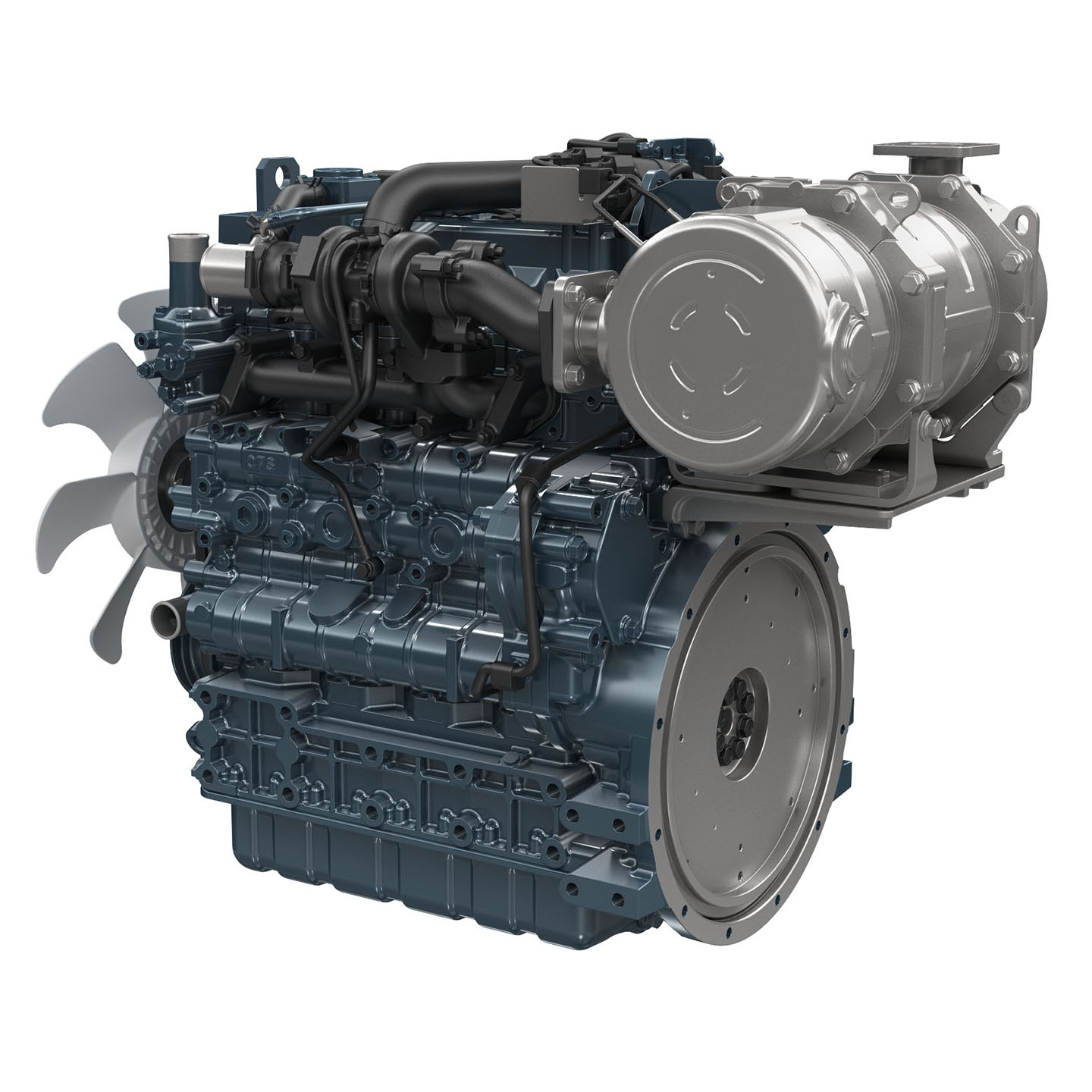

V3307-TE5A
- EPA Tier 4
- CARB Tier 4
- EU Stage V
- China NR IV
V3307-TE5A
- EPA Tier 4
- CARB Tier 4
- EU Stage V
- China NR IV
Performance Curves
Engine Specifications
| Engine Model | V3307-TE5A |
|---|---|
| Emission Regulation | EPA/CARB Tier4 + EU Stage V + China NR IV |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 4 |
| Bore and Stroke mm (in) |
94.0 x 120.0 (3.70 x 4.724) |
| Displacement L (cu.in) |
3.331 (203.3) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Rated Output / Speed*1 kW (HP) / rpm |
55.4 (74.3) / 2600 |
| Maximum Torque / Speed*1 Nm (lb-ft) / rpm |
289.3 (213.4) / 1500 |
| Combustion System | Direct Injection |
| Fuel System | Common rail system |
| Length x Width x Height*2 (Without Aftertreatment Unit) mm (in) |
- |
| Length x Width x Height*3 (With Aftertreatment Unit) mm (in) |
859 x 561 x 749 (33.8 x 22.1 x 29.5) |
| Dry Weight kg (lb) |
305 (672) |
Specifications are subject to change without prior notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
- *1: Gross intermittent SAE J1995
- *2: Exclude cooling fan and exclude aftertreatment unit
- *3: Exclude cooling fan and include aftertreatment unit

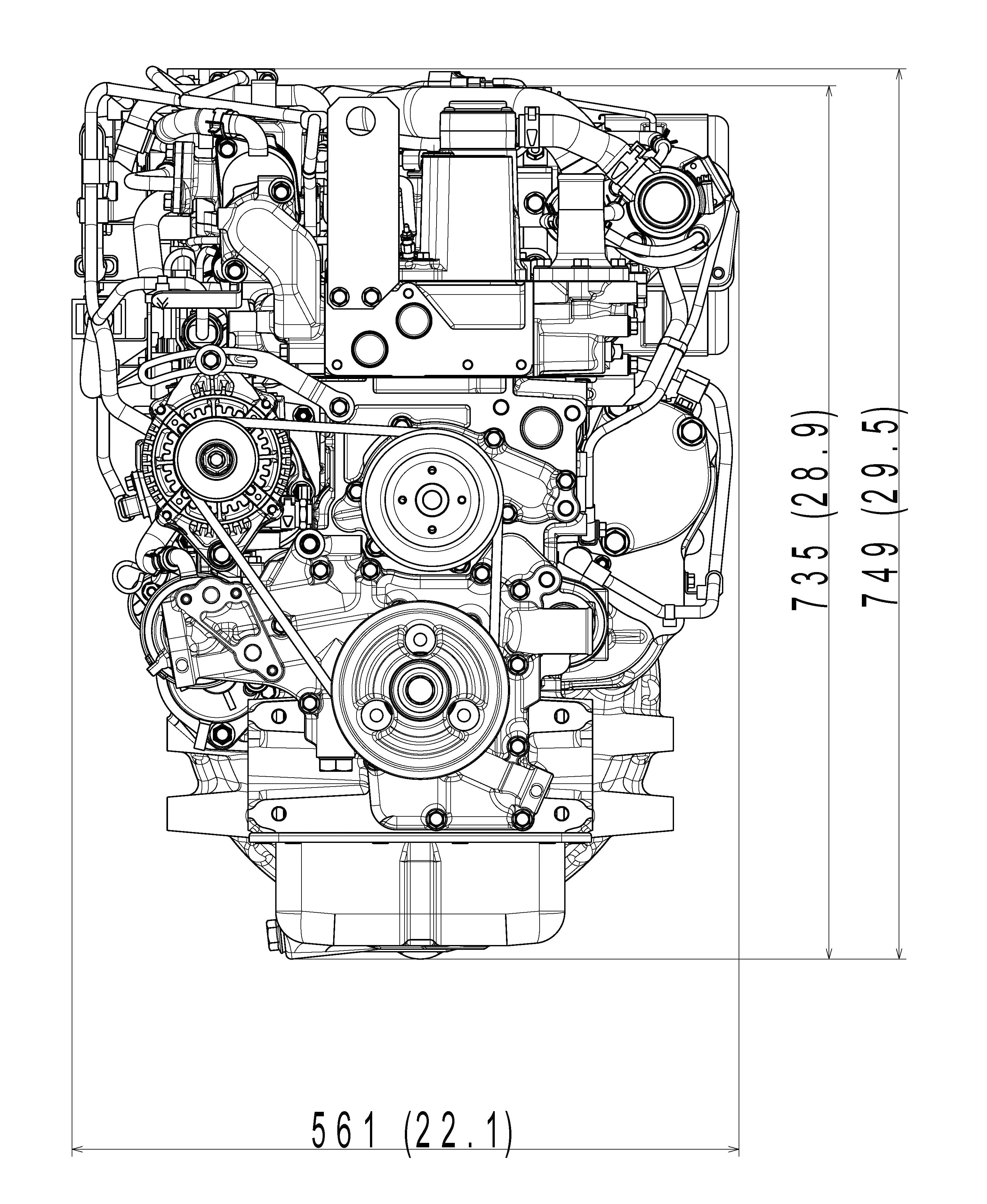

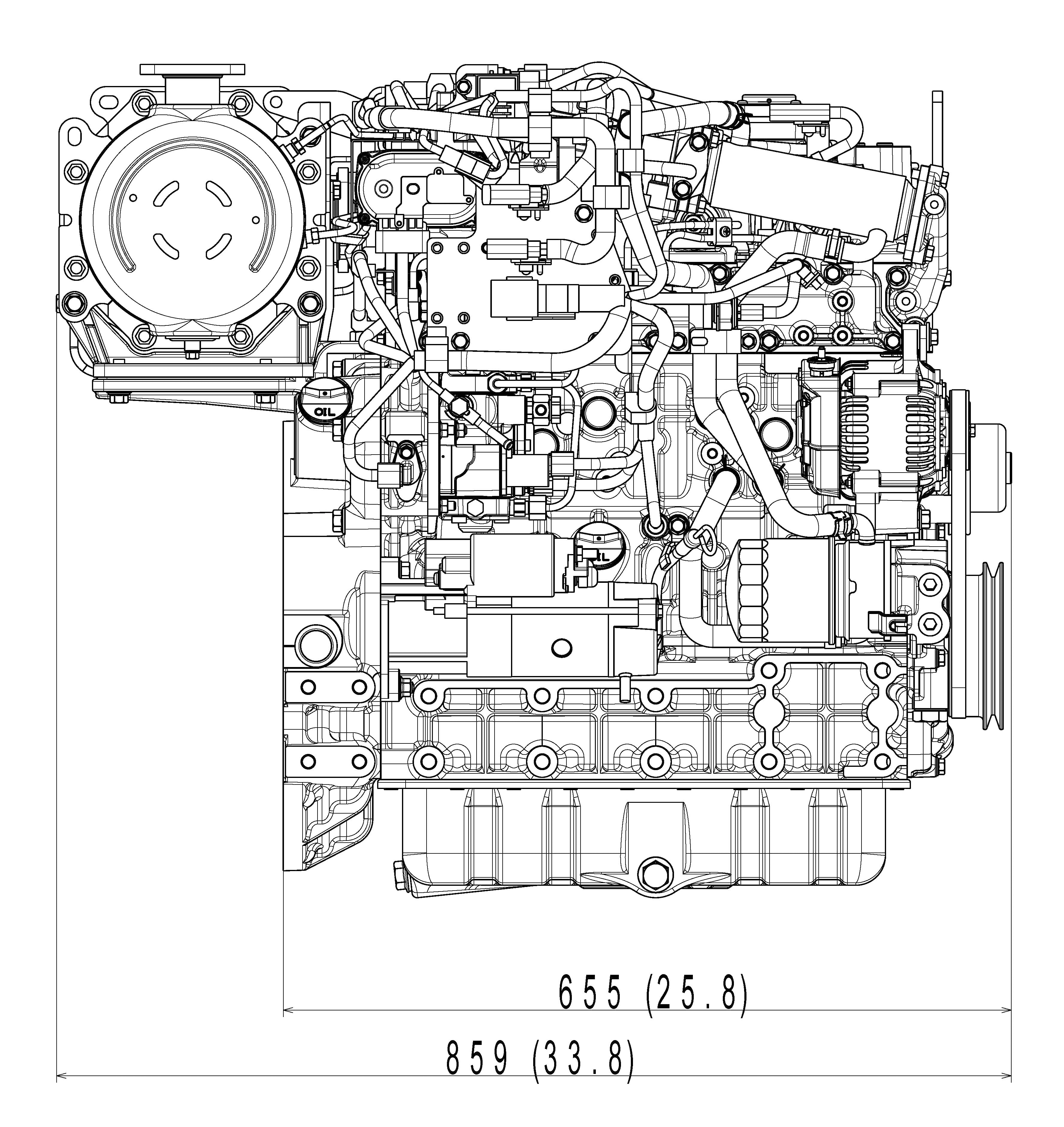

Dimensions
